Heavy-Duty Crash Rail



Heavy-Duty Crash Rail

Forklifts, pallet jacks, carts, and other heavy equipment cause serious damage to walls, which creates the problem of constant maintenance and costly repairs. To prevent such damage, Protek offers an extensive line of heavy-duty crash rails that deliver superior protection from impact and abrasion. Choose from a variety of materials that fit any budget and finishes that suit any interior design. Heavy-Duty wall guards are ideal for loading docks, shipping and receiving areas, storage rooms, corridors, and other back of house spaces that experience high traffic and heavy abuse.




SDCR-100 Super Duty Crash Rail

SDCR-100 super duty crash rails protect walls from heavy impact caused by moving carts, equipment, and pedestrian traffic. Super duty crash rails feature a heavy duty polyurea coating that protects against impact, abrasion, corrosion, and harsh chemicals. The SDCR-100 series crash rail consists of 1/4-inch thick aluminum rail with super duty polyurea coating that fastens to the wall with anodized aluminum I-beam mounting brackets. The 1/4-inch rail is formed with 3-inch radius corner bends and returns, which allows for a continuous installation. SDCR-100 crash rails are pre-cut, pre-formed, and pre-drilled at the factory per field verified dimensions, which means no field modification is required prior to installation. The super duty coating is available in a full range of RAL colors. Choose from several standard options below or inquire about custom options that meet your specific project requirements.


Features:

  • Manufactured from 1/4-inch aluminum rail with super duty polyurea coating and anodized aluminum I-beam brackets

  • Standard and custom heights available

  • Standard and custom brackets available

  • Standard and custom corner radiuses available

  • Full range of RAL colors available

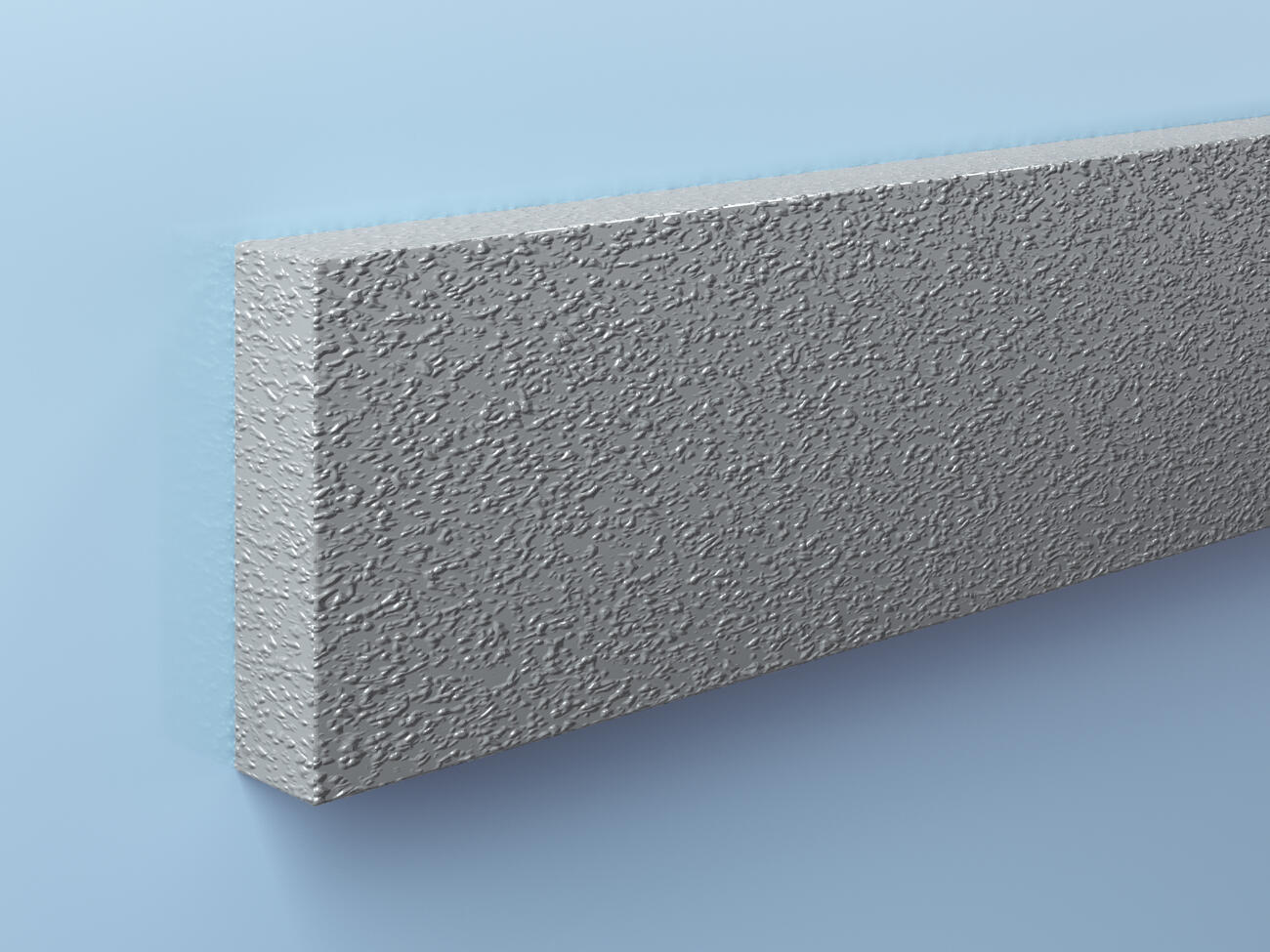

SDCR-4SS Super Duty Crash Rail


SDCR-4SS super duty crash rails protect walls from heavy impact caused by moving carts, equipment, and pedestrian traffic. Super duty crash rails feature a heavy duty polyurea coating that protects against impact, abrasion, corrosion, and harsh chemicals. The SDCR-4SS series crash rail consists of aluminum rails with a flat face profile and super duty polyurea coating that fastens to the wall with a continuous wood retainer. The end points of each crash rail segment are capped with super duty end plates that fasten to the continuous retainer. SDCR-4SS crash rails are supplied in standard lengths and cut to fit in the field by installers, which means no prior field measuring is required. The super duty coating is available in a full range of RAL colors. Choose from several standard options below or inquire about custom options that meet your specific project requirements.


Features:

  • Manufactured from .050-inch aluminum with a super duty polyurea coating

  • Standard and custom profiles available

  • Full range of RAL colors available

  • Other continuous retainer options available

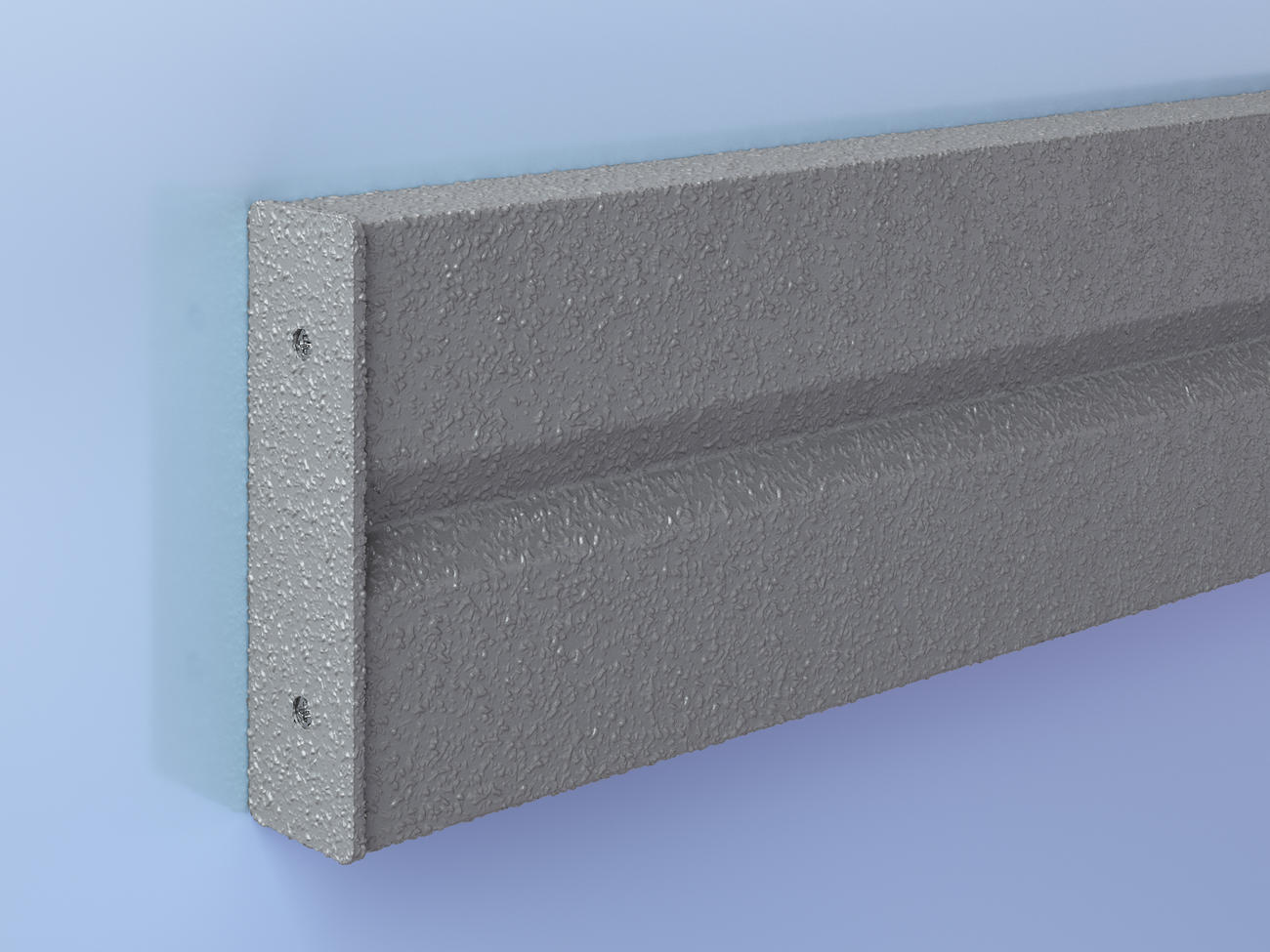

SDCR-200 Super Duty Crash Rail


SDCR-200 super duty crash rails protect walls from heavy impact caused by moving carts, equipment, and pedestrian traffic. Super duty crash rails feature a heavy duty polyurea coating that protects against impact, abrasion, corrosion, and harsh chemicals. The SDCR-200 series crash rail consists of aluminum rails with a center V-groove profile and super duty polyurea coating that fastens to the wall with hidden aluminum mounting brackets. The end points of each crash rail segment are capped with super duty end plates that fasten to the mounting brackets. SDCR-200 crash rails are supplied in standard lengths and cut to fit in the field by installers, which means no prior field measuring is required. The super duty coating is available in a full range of RAL colors. Choose from several standard options below or inquire about custom options that meet your specific project requirements.


Features:

  • Manufactured from .050-inch aluminum with a super duty polyurea coating

  • Standard and custom profiles available

  • Other continuous retainer options available

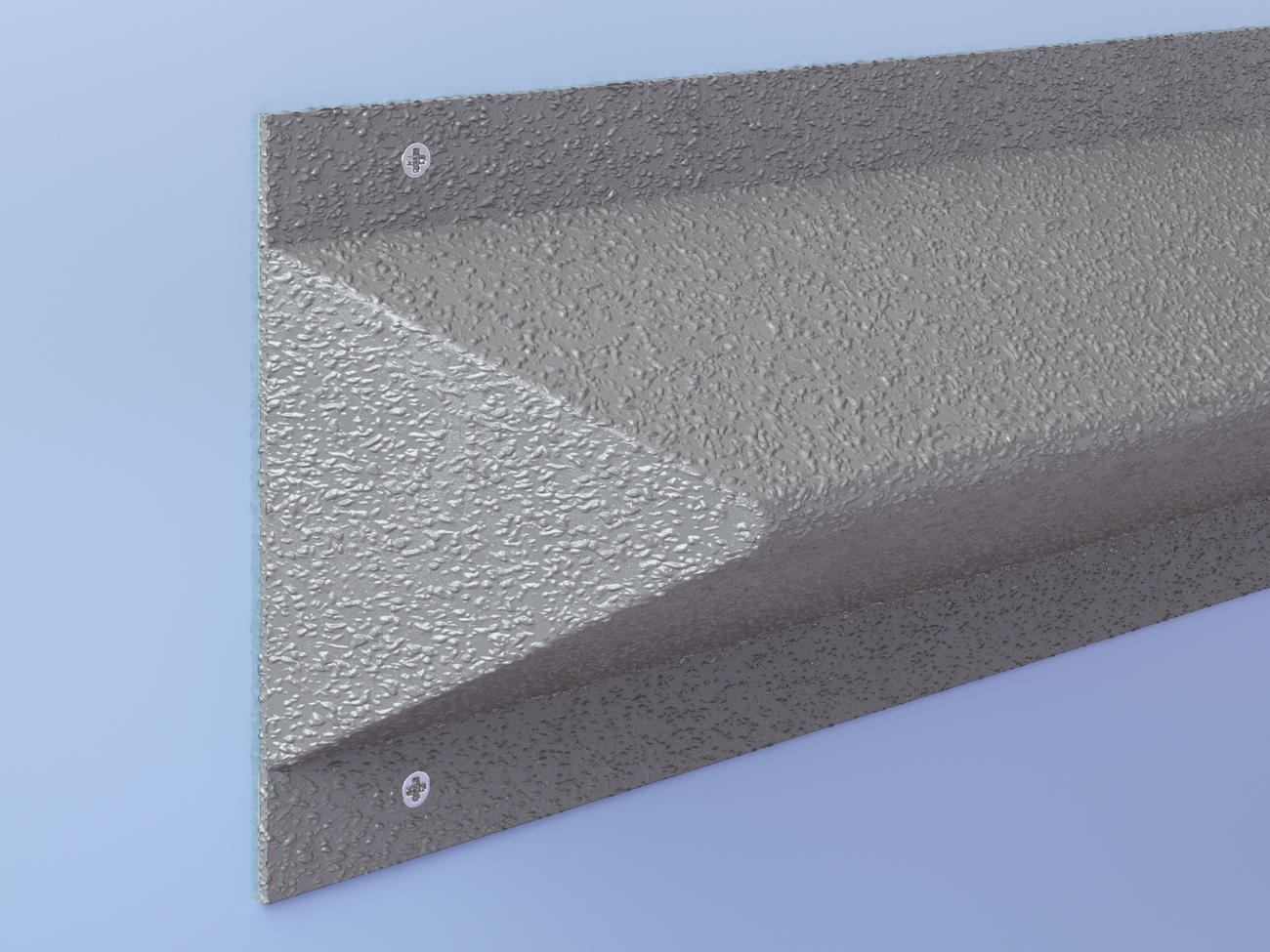

SDBCR-4SS Super Duty Crash Rail


SDBCR-4SS super duty crash rails protect walls from heavy impact caused by moving carts, equipment, and pedestrian traffic. Super duty crash rails feature a heavy duty polyurea coating that protects against impact, abrasion, corrosion, and harsh chemicals. The SDBCR-4SS crash rail consists of an aluminum rail with super duty polyurea coating that fastens directly to the wall through top and bottom flanges. The custom rails terminate with solid welded 45-degree returns, which reduces seams where dirt and germs can collect. SDBCR-4SS crash rails are pre-cut, pre-formed, and pre-drilled at the factory per field verified dimensions, which means no field modification is required prior to installation. The super duty coating is available in a full range of RAL colors. Inquire about custom options that meet your specific project requirements.


Features:

  • Manufactured from .063-inch aluminum with a super duty polyurea coating

  • Standard and custom profiles available

  • Full range of RAL colors available

  • Other thicknesses available

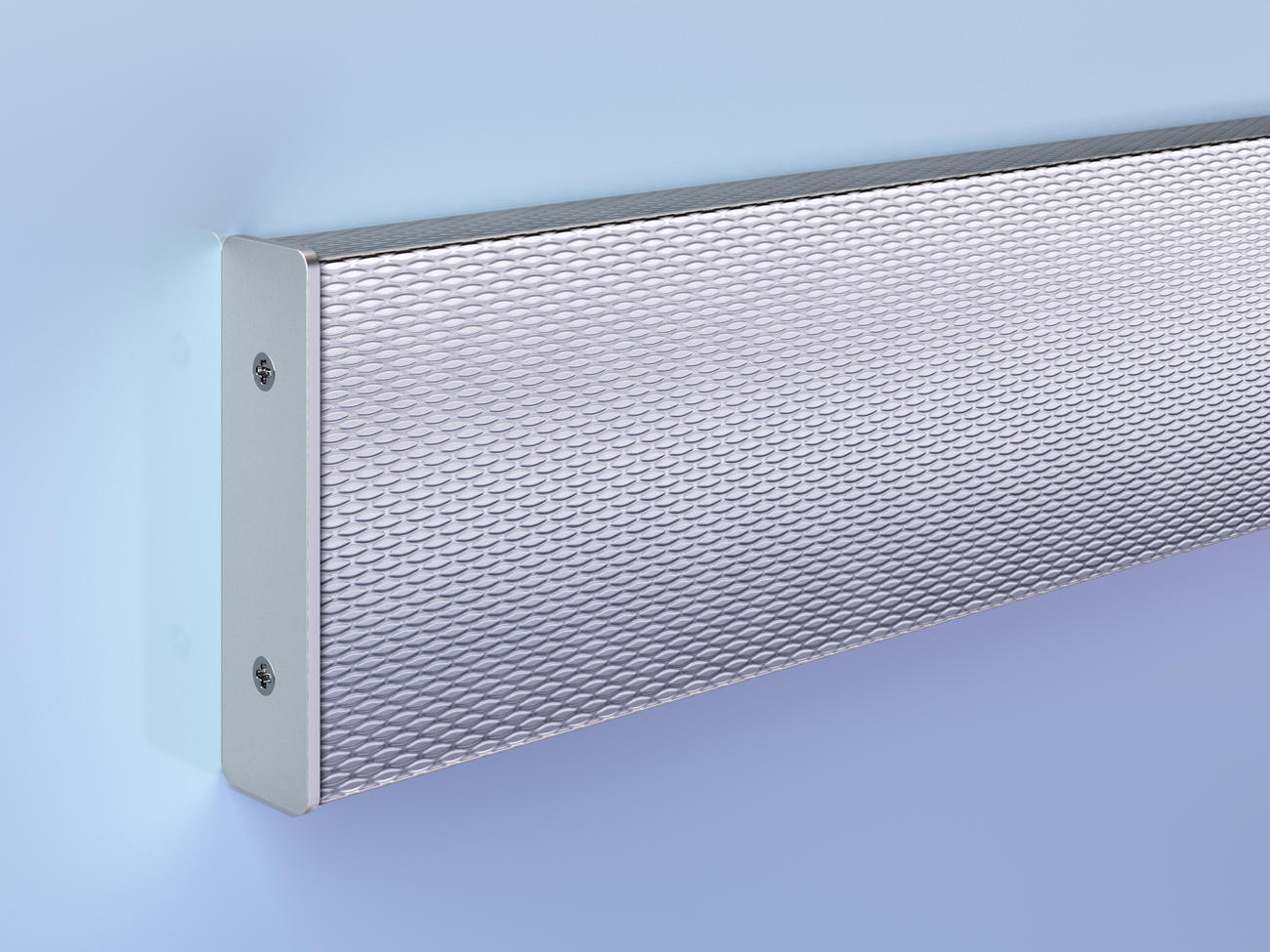

CRSP-4SS Patterned Stainless Steel Crash Rail


CRSP-4SS patterned stainless steel crash rails protect walls from impact caused by moving carts, equipment, and pedestrian traffic. Patterned stainless steel adds visual appeal and it increases protection against abrasion. The CRSP-4SS series crash rail consists of patterned stainless steel rails with a flat face profile that fastens to the wall with a continuous wood retainer. The end points of each crash rail segment are capped with end plates that fasten to the continuous retainer. CRSP-4SS crash rails are supplied in standard lengths and cut to fit in the field by installers, which means no prior field measuring is required. Choose from ten stainless steel patterns and several standard options below or inquire about custom options that meet your specific project requirements.


Features:

  • Manufactured from type 304 #4 satin finish patterned stainless steel

  • Standard and custom profiles available

  • Other stainless steel grades and finishes available

  • Other continuous retainer options available

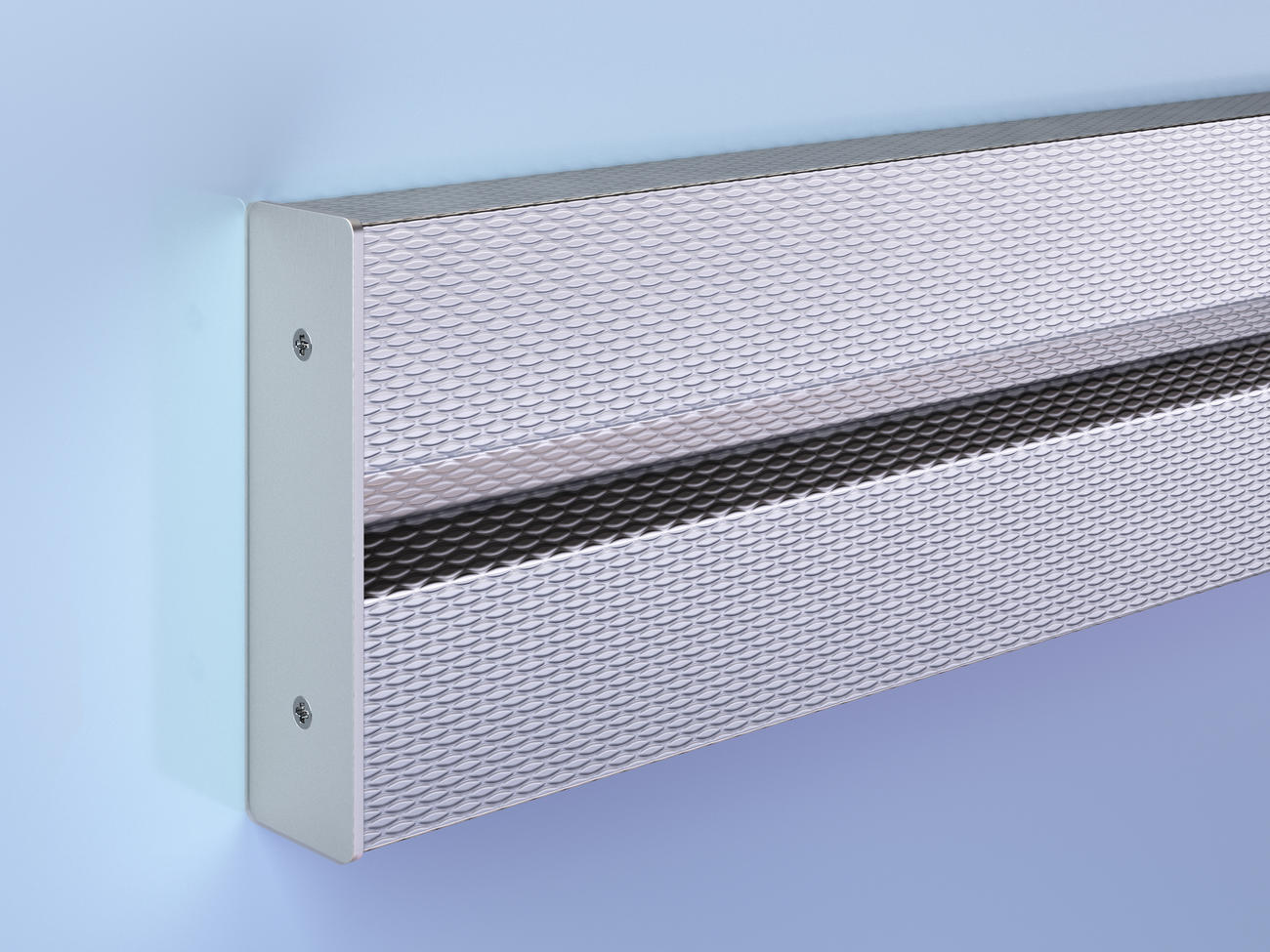

CRSP-200 Patterned Stainless Steel Crash Rail


CRSP-200 patterned stainless steel crash rails protect walls from impact caused by moving carts, equipment, and pedestrian traffic. Patterned stainless steel adds visual appeal and it increases protection against abrasion. The CRSP-200 series crash rail consists of patterned stainless steel rails with a center V-groove profile that fastens to the wall with hidden stainless steel mounting brackets. The end points of each crash rail segment are capped with end plates that fasten to the mounting brackets. CRSP-200 crash rails are supplied in standard lengths and cut to fit in the field by installers, which means no prior field measuring is required. Choose from several standard options below or inquire about custom options that meet your specific project requirements.


Features:

  • Manufactured from Type 304 #4 satin finish patterned stainless steel

  • Standard and custom profiles available

  • Other stainless steel grades and finishes available


CRAD-4SS Aluminum Diamond Plate Crash Rail


CRAD-4SS aluminum diamond plate crash rails protect walls from impact caused by moving carts, equipment, and pedestrian traffic. The CRAD-4SS series crash rail consists of aluminum diamond plate rails with a flat face profile that fastens to the wall with a continuous wood retainer. The end points of each crash rail segment are capped with end plates that fasten to the continuous retainer. CRAD-4SS crash rails are supplied in standard lengths and cut to fit in the field by installers, which means no prior field measuring is required. Choose from several standard options below or inquire about custom options that meet your specific project requirements.


Features:

  • Manufactured from 1/8-inch grade 3003 bright finish aluminum diamond plate

  • Standard and custom profiles available

  • Other aluminum grades and finishes available

  • Other continuous retainer options available

CRAD-200 Aluminum Diamond Plate Crash Rail


CRAD-200 aluminum diamond plate crash rails protect walls from impact caused by moving carts, equipment, and pedestrian traffic. The CRAD-200 series crash rail consists of aluminum diamond plate rails with a center V-groove profile that fastens to the wall with hidden aluminum mounting brackets. The end points of each crash rail segment are capped with end plates that fasten to the mounting brackets. CRAD-200 crash rails are supplied in standard lengths and cut to fit in the field by installers, which means no prior field measuring is required. Choose from several standard options below or inquire about custom options that meet your specific project requirements.


Features:

  • Manufactured from 1/8-inch grade 3003 bright finish aluminum diamond plate

  • Standard and custom profiles available

  • Other aluminum grades and finishes available



SDCR-200W Welded Super Duty Crash Rail

SDCR-200W welded super duty crash rails protect walls from heavy impact caused by moving carts, equipment, and pedestrian traffic. Super duty crash rails feature a heavy duty polyurea coating that protects against impact, abrasion, corrosion, and harsh chemicals. The SDCR-200W series crash rail consists of aluminum rails with a center V-groove profile and super duty polyurea coating that fastens to the wall with hidden aluminum mounting brackets. The end points of each crash rail segment are welded closed creating a solid and seamless piece that is more durable. SDCR-200W crash rails are supplied in custom-fabricated lengths, which means no field modification is required prior to installation. The super duty coating is available in a full range of RAL colors. Choose from several standard options below or inquire about custom options that meet your specific project requirements.


Features:

  • Manufactured from .050-inch aluminum with a super duty polyurea coating

  • Seamless welded ends

  • Standard and custom profiles available

  • Other continuous retainer options available



SDCR-4SSW Welded Super Duty Crash Rail


SDCR-4SSW welded super duty crash rails protect walls from heavy impact caused by moving carts, equipment, and pedestrian traffic. Super duty crash rails feature a heavy duty polyurea coating that protects against impact, abrasion, corrosion, and harsh chemicals. The SDCR-4SS series crash rail consists of aluminum rails with a flat face profile and super duty polyurea coating that fastens to the wall with a continuous wood retainer. The end points of each crash rail segment are welded closed creating a solid and seamless piece that is more durable. SDCR-4SSW crash rails are supplied in custom-fabricated lengths, which means no field modification is required prior to installation. The super duty coating is available in a full range of RAL colors. Choose from several standard options below or inquire about custom options that meet your specific project requirements.


Features:

  • Manufactured from .050-inch aluminum with a super duty polyurea coating

  • Seamless welded ends

  • Standard and custom profiles available

  • Full range of RAL colors available

  • Other continuous retainer options available
